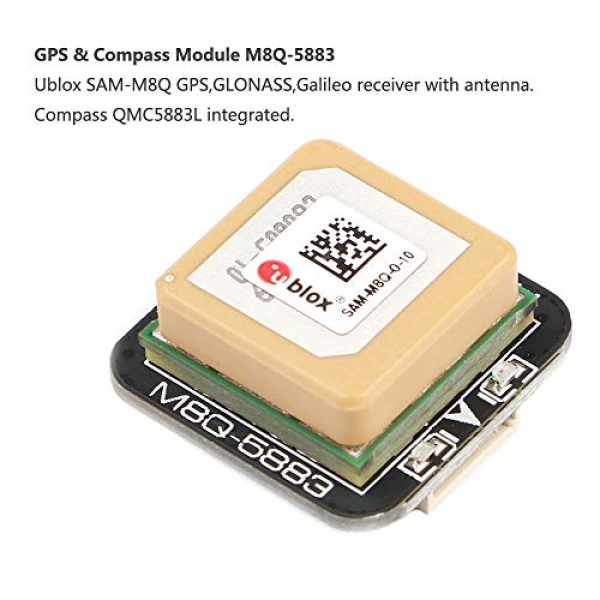

Makerfire GPS Compass Module, Mini FPV GPS Module,M8Q-5883 Ublox SAM-M8Q GPS QMC5883L Compass Module for RC Drone FPV Racing

Specification:
Merchandise name:GPS andamp; compass module M8Q-5883
Dimensions: 20 x 20 x 10 mm
Weight:7g
Enter voltage vary:four~6V
Uart (Tx,Rx) interface for GPS SAM-M8Q
I2C (DA,CL) interface for Compass QMC5883L
Battery for HOT module commence
Strength LED(Crimson)andamp;Time pulse LED(Blue)
Supported by INAV/Betaflight/Ardupilot, ect.

Aspects:
Magnetic sensor QMC5883L built-in

Max navigation replace price
Single GNSS as much as 18 Hz
2 Concurrent GNSS(GPS andamp; GLONASS) as much as 10 Hz
Horizontal jam accuracy(GPS andamp; GLONASS) 2.5 m CEP
Velocity accuracy 0.05m/s
Chilly commence 26s
Aided frigid begins:2s
Sizzling commence 1s

Sensitivity
Tracking andamp; Navigation:-165dBm
Reacquisition:-158dBm
Chilly commence:-146dBm
Sizzling commence:-155dBm

Guidelines:
GPS, GLONASS, SBAS, QZSS are enabled by default
Blue PPS LED blinking(1Hz) technique 3D mounted
replace price 1Hz andamp; baudrate 9600 default
Baud 9600~115200 supported by INAV/BF/Ardupilot
replace price 5Hz with INAV UBLOX Protocol
replace price 10Hz with INAV UBLOX7 Protocol
Compass Alignment(Arrow forward):
INAV/BF: CW 270° Flip
Ardupilot/Mission Planner: Rotation None
BF would not enhance GPS jam defend and RTH, GPS Rescue mode is supported by BF3.5 or closing.
No need compass for Mounted wings with INAV firmware
The scratches on ceramic antenna are the consequence of tuning the antenna by ublox.

Packing list:
1 * M8Q-5883 module
1 * SH1.0-6P 20cm silicon wire
seventy two-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking off
Aspects an additional entrance-cease LNA for optimized efficiency and a entrance-cease SAW filter for elevated jamming immunity
Salvage-in embedded GNSS patch antenna, low energy consumption
The 15 x 15 mm patch antenna provides the categorical compromise between the efficiency of a Correct Hand Circular Polarized (RHCP) antenna and a tiny size to be built-in in any kind.

Ticket: $38.99
