TENINYU 40Ch 5.8G 600mw 5km Wi-fi AV TX RX Transmitter TS832 Receiver RC832 for FPV DIY RC Drone Car Multicopter

//TENINYU 40Ch 5.8G 600mw 5km Wi-fi AV TX RX Transmitter TS832 Receiver RC832 for FPV DIY RC Drone Car Multicopter

TENINYU 40Ch 5.8G 600mw 5km Wi-fi AV TX RX Transmitter TS832 Receiver RC832 for FPV DIY RC Drone Car Multicopter

This post contains affiliate links.

TENINYU INC.Mark: $32.ninety nine Free Transport

Ingredients:
Forty channels: 5 bands and all frequencies nicely matched Two switching buttons: easy to replace frequency channels and bands
Two digital display: real-time positioning which frequency band and which channel obtained
Energy off memory: replay the very final frequency band and channel

Specification for TS832 Transmitter:
Modulated: Wideband FM Modulation
Forty channels: Quilt A, b, E, F, r bands
Present unique: 220 mA
Frequency: 5.8GHz 5 bands Forty channels, with Raceband: 5658-5917MHz
Transmitting distance: > 3000m (commence space)
Transmitter connector:RP SMA female
Antenna connector: RP SMA male
Audio carrier Frequency: 6.5 MHz
Audio Enter Level: Zero.5 ,2.Zero Vp-p
Audio Enter Impedance: 10K Ohm
Output Impedance: 50 Ohm
Working Voltage:7-16V
Working Temperature: -10 +eighty five ℃
Output Energy: 27-28 dBm
Video Structure: NTSC/PAL
Video Band Width: Zero-Eight.Zero MHz
Video Enter Level: Zero.Eight,1.Zero,1.2 Vp-p
Video Enter Impedance: Seventy five Ohm
Weight: 22g
Dimension (L×W×H): 2.12×1.23×Zero.39 inches

Specification for RC832 Receiver:
Energy Present: DC 12V
Working Frequency: 5.8GHz
Sensitivity: ≤-ninety dBm
Kind Identical outdated: NTSC/PAL
Consumption Unique: 200mA, Max
Receiver connector: RP SMA female
Antenna connector: RP SMA male
On hand Channel: 40CH
Antenna Plan: 2dbi
Audio Carrier: 6.5MHz
Audio Output Level: 1.Zero Vp-p Typ 10 K Ohm
Antenna impedance: 50 Ohm
Antenna Enter Impedance: 50 Ohm TYP
Video impedance: Seventy five Ohm
Video Structure : NTSC/PAL
Video Output Level: 1.Zero Vp-p Typ Seventy five Ohm
Dimension: 80x65x15mm
Weight: 85g
Dimension (L×W×H): 3.15×2.Fifty six×Zero.59 inches

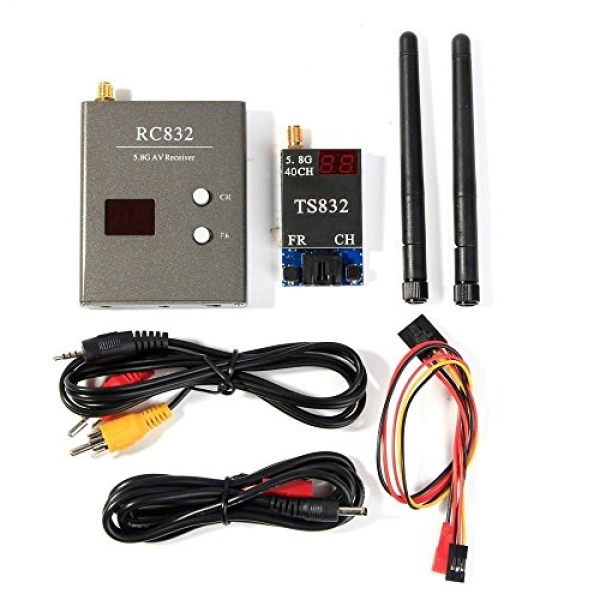

Package:
1 x WR832 5.8GHz 40CH FPV Receiver
1 x WT832 5.8GHz 40CH FPV Transmitter
2 x Antenna
2 x Energy cable
1 x AV cable
1 x User manualLong vary more than 5km vary within the commence space – Dash and play
Forty channels selectable TX and RX, Quilt A, B, E bands and F band (Airwave band)
Built in Digital display and push button for with out problems channel substitute – Sturdy and gentle-weight
Energy off memory: Replay the very final frequency band and channel
Neatly-liked video transmitter and receiver for all ,nicely matched with various forms of faraway regulate toys (RC helicopter,quadrocopter ,airplane and boat and heaps others.)

Mark: $34.ninety eight $32.ninety nine
